TS-300 & TS-300 GF

Product details

Perimeter Cutting
Any type and shape of mold can be manufactured according to the customer’s trays.

To give prestige to your business
Maximum sealing surface: 320×260 mm
Power: 1,500 W
Requires compressed air.

  • Manufactured in AISI 304 stainless steel.
  • Die set in anodized aluminum.
  • Semi-automatic tray sealing machine.
  • Automatic film advance.
  • Ergonomic and robust model.
  • Perfect for transporting the food without loss of liquid or sauces.
  • Easy change of die set.
  • Fast heating of the selected temperature.
  • It allows to work with different types of tray materials, PP, PET, ALUMINIUM…
  • Easy maintenance and cleaning.
  • Voltage: 220V/1ph/50Hz.

The GF models are equipped to work with gas flushing.

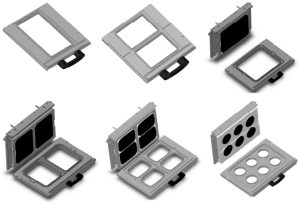

Standard Molds
TS-300 & TS-300 GF

320×260 mm 1/2GN (1 tray)
260×160 mm 1/4GN (2 trays)
168×130 mm 1/8 GN (4 trays)

6L silent compressor.

Packing Dimensions (mm) 770x730x700
Net weight/ Gross weight (Kg) 65/75
Film Roll Width (mm) 430
Power (W) 1.500
Maximum sealing (mm) 320×260

A: 671
B: 385
C: 480
D: 375
E: 490
F: 325
G: 770

Digital control panel

  • Digital control panel.
  • Temperature regulation.
  • Sealing time regulation.
  • Gas inlet time regulation, only in GF models.
  • Electronic temperature control from 0ºC to 230ºC.
Download PDF file
Download PDF file
